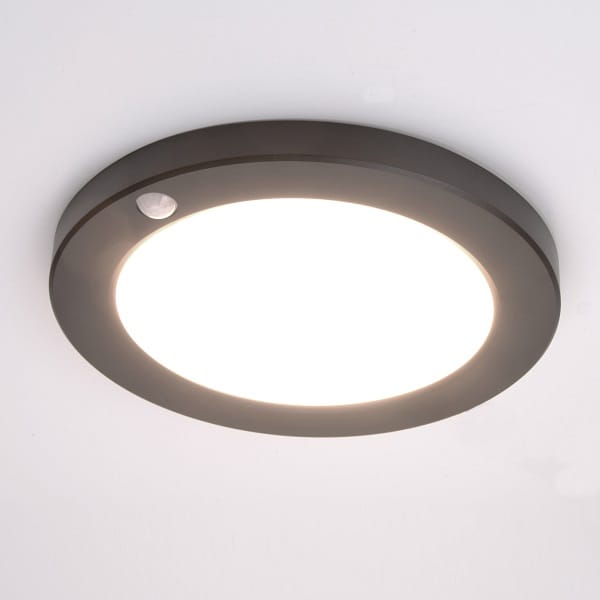

18W LED CCT Adjustable PIR Panel Light Specification
• Manufactured to BS Standard
• Input : 110-240V~ 50/60Hz
• Wattage : 18W
• CCT : 3000K±300K/4000K/6000K±500K(adjustable)
• Temperature: -20~+40℃
• Detection Range : 120°/360°
• Detection Distance : max.6m(<24℃)
• Detection Moving Speed: 0.6-1.5m/s
• Ambient Light : <10/2000LUX (adjustable) OFF sensor
• Time Delay:30sec/120sec
• Working Humidity: <93%RH• UKCA, CE and RoHS certified
• Meets all UK and EU Regulations

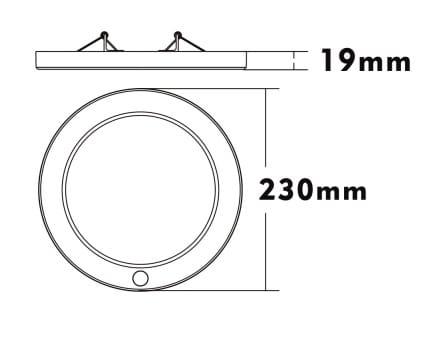

• Dimensions: 230mm(W) x 19mm(H)
• Recessed Cutout Φ65-205mm
Features:
Your 18W LED CCT Adjustable PIR Panel Light includes:
• Installation Height: 2.2-4m Ceiling Mount Working, 1.8-2.5m Wall Mount
• Can identify day and night/ OFF sensor:
• The consumer can adjust working state in different ambient light.
• Adjustable Time Delay and Time-Delay is added continually:
--- The length of time delay could be set according to the customers’ requirement, the Min. time is 30sec, Max. time is 120sec.
• CCT Adjustable: The colour temperature may be set by means of a switch on the rear of the luminaire.
• Full fitting instructions for simple installation
• 2 year warranty
